Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm

Product Categories
Shenzhen Coast Glass Co., Ltd.
Contact Now

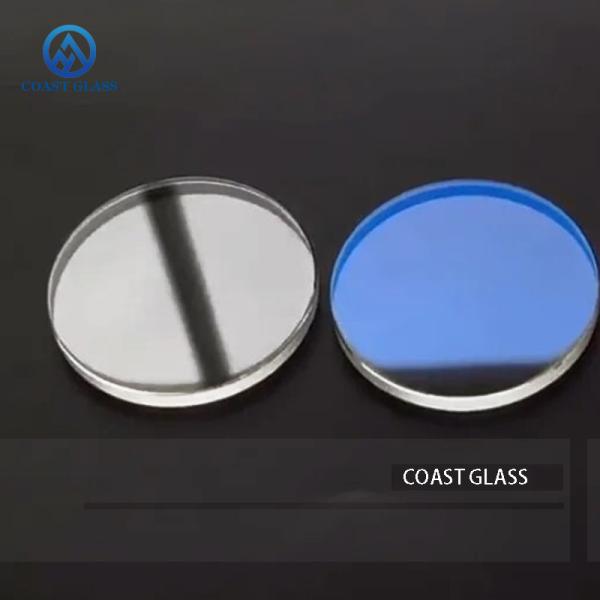

Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm

Place of Origin : Guangdong, China

Model Number : Optical Glass

Supply Ability : 10000 Square Meter/Square Meters per Month

MOQ : 99 pieces

Price : $0.37/pieces 99-99 pieces

Warranty : NONE

Customized support : OEM, ODM

Use : Optical Instrument

Product Name : Optical Glass

Uses : Optical Instrument

Size : Customized

Origin : Guangdong,China

Shape : Customized

Thickness : Customized

Port : Zhuhai

Contact Now

Quartz Optical Glass IR Transmission Filter 350 to 1100nm Narrow Bandpass Quartz Window Filter

We can custom-made all kinds of optical glass products according to your
detail request,drawing or sample.
Welcome to inquiry
Products Description
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
12+YEARS EXPERIENCE IN OPTICAL GLASS PRODUCTION
We can provide one-stop service to customer.
We have sold to over 120 countries.
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Custom Optical Windows
Optical Windows are flat, plane-parallel plates that are often used as protective barriers for electronic sensors or detectors from outside environments.
Optical Windows should be selected based on the material transmission or mechanical properties of the substrate.
Optical Windows do not cause change in the magnification of a system.
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
If you want to get the Samples and know more detail information,
Please feel free to contact us !
Product Paramenters
Applicable to infrared imaging, monitoring, infrared inspection, telemetry and infrared spectroscopic optical system.
Technical Requirement
Commercial Grade
Precision Grade
High Precision
Size Range
1-600mm
2-600mm
2-600mm
Diameter Tolerance
土0.1mm
土0.025mm
土0.01mm
Thickness Tolerance
土0.1mm
土0.025mm
土0.01mm
Parallelism
±3´
±1´
±5´´
Surface Quality
60-40
40-20
20-10
Surface Accuracy
1.0λ
λ/10
λ/20
Bevelling
0.1-0.5mm*45°
Substrate
K9/CaF2 or other optical crystal
PRODUCT LIST (ACCEPT CUSTOM)
Diameter
(mm)
Thickness
(mm)
Coating
Diameter
(mm)
Thickness
(mm)
10
1
Customer's Request
75
3
12.5
1
75
5
20
2
76.2
6
25
1.5/3
80
8
30
3
90
10
38.1
3
100
10
40
2/4
150
15
50
3
180
18
50.8
3
200
20
63.5
5
300
35
Optical Windows are flat, plane-parallel, transparent optical surfaces designed to protect sensors and other electronic
instruments from environment conditions.
Optical Window selection considerations include material transmission properties as well as scattering, strength and resistance to certain environments. Their use should not impact on magnification of a system. Optical Windows can be optically polished and incorporate an element for diffusing light source to control illumination.

AR coatings can be applied to ensure maximum transmission performance for a particular wavelength. The windows are made in a range of materials including UV Fused Silica, Quartz, IR Crystals and optical glasses. Our optical window properties include x-ray protection, non-browning to UV light and light transmission from deep ultra violet to far infrared.
UQG Optical Windows products include wedges, substrates, discs, flats, plates, rods, protection windows, laser windows, camera windows, light guides and domes.

Our Windows are used by scientific and industrial companies across the world of medical, defence, instrumentation, laser, research and imaging.

All our Optical Windows can be supplied from a standard range stock. We also supply custom optical windows made to your specification, sizes and specific design.
Customization Choices
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
FOR MORE PRODUCTS,PLEASE CONSULT CUSTOMER SERVICE
Applications
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Product Procedure
If you want to customize, please let me know!
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Company Profile
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Shenzhen Coast Glass Technology Co., Ltd. is a large-scale glass processing enterprise.
The company was established in 2015, and its products have obtained CCC certification. The cooperative factory has passed ISO9001 international certification.
Our company specializes in the production and sales of decorative glass and optical electronic glass, as well as technical development.
Our main product categories include flat and optical series products, including PDLC glass, stained glass , watch glass, touch screen, and filter glass series products.
The company has a complete set of production lines and testing equipment, and our products are exported to Southeast Asia, Europe, America, and other places. High quality products and services are our foundation.
The company adheres to the principle of "people-oriented, quality first, and customer first", with the quality policy of "implementation, continuous improvement; quality first, and customer satisfaction"; Strive to achieve the development goals of "organizational system, scientific decision-making, standardized management, and standardized efficiency", and enable the enterprise to flourish.
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Package & Shipment
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
FAQ
Narrow Bandpass Optical Components Quartz Optical Window 350 to 1100nm
Q1.What kind of service you can offer?
OEM:We produce according to buyer's design.
ODM:We provide design & products.

Q2.Are you a trading company or a factory ?
We have our own factory, with BSCI passed.

Q3.What’s your sample developing lead time and mass production ?
Samples: 2 days for the models we have already; 35 days for new models which need new molds; 30 day for the mass production of one container.

Q4.Can your factory put our brand on the product?
Our factory can laser print customer's logo on the product with the authority from customers.

Q5: Which terms of delivery do you support?
We support EXW, FOB, CNF, CIF, and Express Delivery(UPS, FedEx, DHL, TNT, and EMS).

Q6: Which methods of payment do you support?
We support TT, L/C,DP,PayPal, Western Union, and cash(RMB).

Q7: What about the after-sales service?
Through emails, pictures, video or guest samples to confirm the real cause of the problem.
